CR-N Non-Stop Rewinder

Contiweb’s CR-N non-stop rewinder can splice paper reels of different weight, web width or coating, without having to stop your press. Even varied finishing requirements can be accommodated as the Contiweb CR-N can roll up jobs onto different cores.

Non-stop winding equipment can help you to save considerable production and labor hours.

Download Product Info

Automatic rewinding without production stop

The CR-N rewinder is fully automatic. The zero-speed operation ensures perfectly rewound reels without interrupting production. With the press in production, the running and new web are brought to a halt during the splice cycle, when the press is fed from the integrated festoon. The automatic splice can be made at production speed, at any reel diameter and at any time. Fully wound reels can be unloaded and cores prepared during production. A lap splice is standard, and the CR-N can optionally perform one or two-sided butt splices.

Shafts on the CR-N can be taken out and must be inserted into the core of the new reel. The arms can move the shaft up and down, so that reel loading and unloading can be done from the floor. No crane is necessary. The CR-N offers additional optional functionalities, including integrated electronic web tension control at outfeed, web guide, and slitter before the splice. With the integration of the slitter, printers can slit the web in ribbons with variable web widths before the splice, without interrupting production. While slitting, it is possible to splice and switch from one reel to the next.

Features

  • Horizontal festoon for zero-speed splicing.
  • Lap splice as standard. One-sided or double-sided butt splice as an option.
  • Arms that lift the reels up and down from the loading platform.
  • No reel shafts required.
  • Compatible with all web inkjet presses.
  • Maximum winding speed 330 m/min (1080 ft/min).
  • CR-N non-stop rewinder available in 22” (560mm) and 42" (1100 mm).
Contiweb CRN LP1

Features

  • Horizontal festoon for zero-speed splicing.
  • Lap splice as standard. One-sided or double-sided butt splice as an option.
  • Arms that lift the reels up and down from the loading platform.
  • No reel shafts required.
  • Compatible with all web inkjet presses.
  • Maximum winding speed 330 m/min (1080 ft/min).
  • CR-N non-stop rewinder available in 22” (560mm) and 42" (1100 mm).
Contiweb CRN LP2

Features

  • Horizontal festoon for zero-speed splicing.
  • Lap splice as standard. One-sided or double-sided butt splice as an option.
  • Arms that lift the reels up and down from the loading platform.
  • No reel shafts required.
  • Compatible with all web inkjet presses.
  • Maximum winding speed 330 m/min (1080 ft/min).
  • CR-N non-stop rewinder available in 22” (560mm) and 42" (1100 mm).

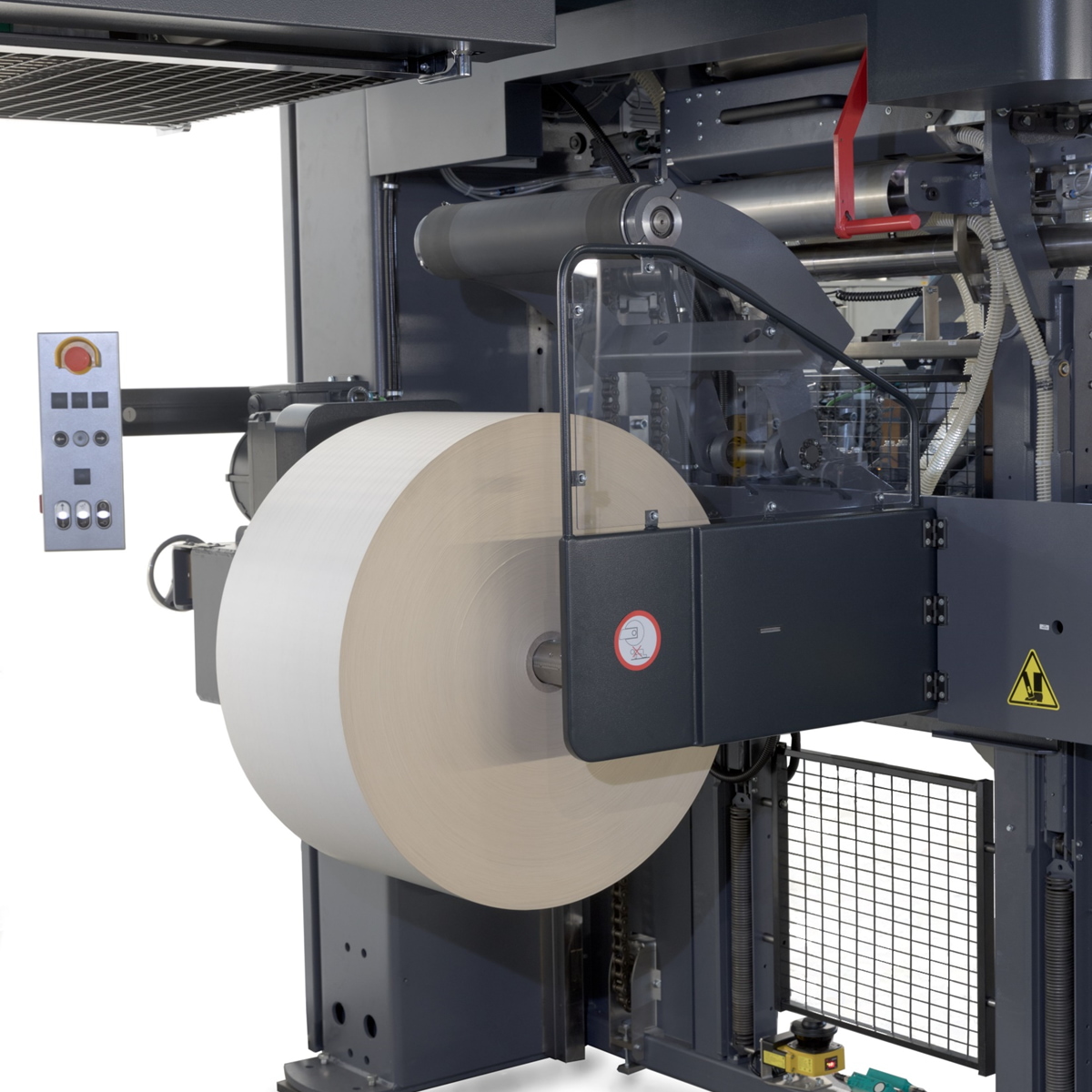

Contiweb CRN LP3

Features

  • Horizontal festoon for zero-speed splicing.
  • Lap splice as standard. One-sided or double-sided butt splice as an option.
  • Arms that lift the reels up and down from the loading platform.
  • No reel shafts required.
  • Compatible with all web inkjet presses.
  • Maximum winding speed 330 m/min (1080 ft/min).
  • CR-N non-stop rewinder available in 22” (560mm) and 42" (1100 mm).
Contiweb CRN LP4

Features

  • Horizontal festoon for zero-speed splicing.
  • Lap splice as standard. One-sided or double-sided butt splice as an option.
  • Arms that lift the reels up and down from the loading platform.
  • No reel shafts required.
  • Compatible with all web inkjet presses.
  • Maximum winding speed 330 m/min (1080 ft/min).
  • CR-N non-stop rewinder available in 22” (560mm) and 42" (1100 mm).
Contiweb CRN LP5

Benefits

  • Non-stop winding saves considerable production and labor hours.
  • Change reels and prepare splices during production, so avoiding production stops.
  • Preparing the splice is very easy and takes only two minutes. The splice performance is 99.8% or higher.
  • You can splice over to papers of different web widths, coatings and weights.
  • The non-stop rewinder allows you to make a splice whenever you want, without stopping production.
  • The lift arms of the Contiweb equipment can move up and down, allowing the reel to be loaded from the ground.
  • Additional advantages are: fewer mistakes when preparing the splice, less chance of losing the web completely out of the engines (time pressure of production). Less waste by cutting unnecessary white paper, fewer startup problems, energy savings by quick change over.
